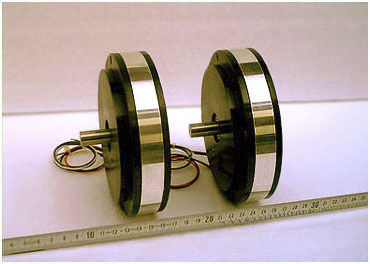

DC motor KN series
synchronousdiscironless

DC motor - KN series - Printed Motors - synchronous / disc / ironless
DC motor - KN series - Printed Motors - synchronous / disc / ironless
Add to favorites
Compare this product


Characteristics

AC/DC
DC
Type
synchronous
Configuration
disc, ironless
Power

Min.: 43 W
(0.058 hp)

Max.: 1,000 W
(1.36 hp)

Description

- compact axial length, optimal torque/weight ratio possible in a high performance dc servo motor - with NdFeB magnet material - 0,13... 3,2 Nm (43... 1.000 W) - nominal speed up to 5.000 rpm - for high-dynamic applications and/or exact regulations at large speed range - zero cogging for smooth operation, even at crawling speed - available with integrated tacho (marked with asterisk * in charts below), optical encoder, second shaft end, failsafe brake and precision gearhead The KN-series ServoDisk motors makes use of the flat disc armature and high-energy neodymium-iron-boron magnets resulting in an ultra-thin motor. The ironless, low intertia armature delivers high acceleration and zero cogging.
