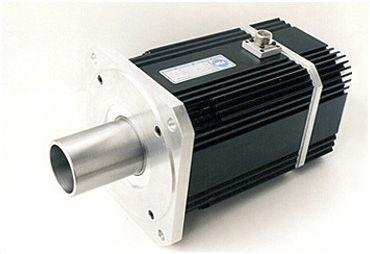

DC motor HWM seriesbrushless400 Vpermanent magnet
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Voltage
- 400 V
- Configuration
- permanent magnet
- Power
Max.: 5,600 W
(7.614 hp)Min.: 60 W
(0.082 hp)
Description
- throughout hollow shaft with inside diameter up to 80 mm
- with permanent magnet rotor, brushless, sinusoidal
commutated.
- high power density by short and compact axial length
- high overload operating mode
- low inertia, small electrical and mechanical time constants,
- small start up- and stopping times
- 0,2 ... 18 Nm (60 ... 5600 W),
- Nominal speed 3000 to 5000 rpm
- with integrated resolver
- deliverable with hollow shaft gearboxes up to 400 Nm
HWM-Series HollowDyn: brushless hollow shaft servo motors Made in Germany
Catalogs
HWM...- series
4 Pages
