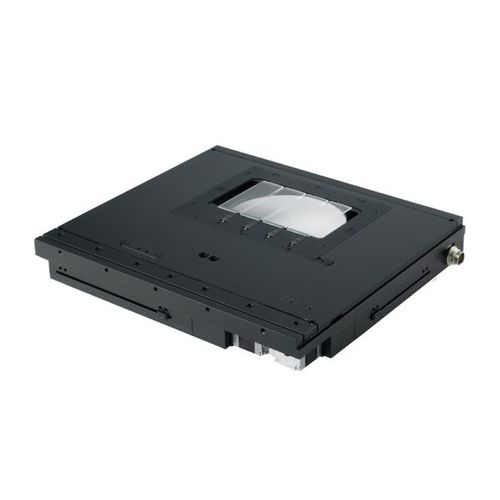

Microscope positioning stage H101F seriesXYmotorized2-axis
Add to favorites
Compare this product
Characteristics
- Orientation
- XY
- Type
- motorized
- Number of axes
- 2-axis
- Other characteristics
- miniature, for microscopes, low-profile, with built-in stepper motor
- Stroke
Max.: 120 mm
(4.724 in)Min.: 80 mm
(3.15 in)- Speed
Max.: 100 mm/s
Min.: 40 mm/s
- Repeatability
Max.: 0.7 µm
Min.: 0.2 µm
- Load
Max.: 10 kg
(22.05 lb)Min.: 0 kg
(0 lb)
Description
Designed for upright microscopy, the H101F stage features a completely flat top plate to provide unlimited obstruction-free space for nosepiece rotation and facilitate the use of high numerical aperture objectives and condensers. The slim design, miniature high torque motors and small gauge cabling simplify integration into customized microscopes and other optomechanical assemblies. Compatible with a wide variety of Prior sample holders, the H101F is suited to all common microscopy applications. The H101F is the highest speed non-encoded option flat top upright stage range, featuring Prior's patented Intelligent Scanning Technology (IST) to optimize stage accuracy, linearity and other performance characteristics in combination with a 2 mm ballscrew.
