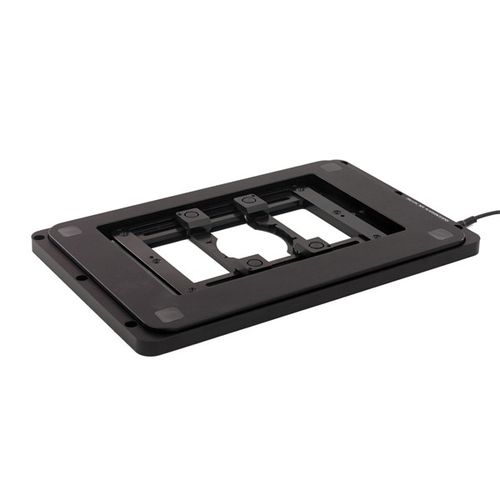

Z-axis nanopositioning stage SP seriespiezo1-axishigh-accuracy
Add to favorites
Compare this product
Characteristics
- Orientation
- Z-axis
- Type
- piezo
- Number of axes
- 1-axis
- Other characteristics
- high-accuracy, for microscopes
- Stroke
400 µm, 600 µm, 800 µm
- Speed
8 m/s, 9 m/s, 10 m/s
(26.25 ft/s, 29.53 ft/s, 32.81 ft/s)- Repeatability
3 nm
Description
Delivering the best positioning performance and fastest recovery between Z stacks, the NanoScan-SP range of Piezo driven stages are compatible with the Prior motorized stage as well as many common microscopes when using appropriate adapter plates. The super slim 13.7mm height is a feature of the 400um and 600um closed loop versions, providing better access for illumination of the sample area. Accessory insert plates are available for a wide variety of samples, including well plates, microtitre plates, slides and petri dishes.
