Pneumatic valve actuator rotarydouble-acting
Add to favorites
Compare this product
Characteristics
- Type
- pneumatic
- Movement
- rotary
- Configuration
- double-acting
- Torque
Min.: 17 Nm
(12.54 ft.lb)Max.: 5,000 Nm
(3,687.81 ft.lb)
Description

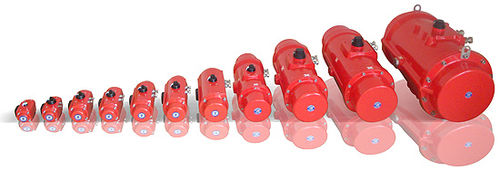

Aluminium actuators, 0º-90º or 0º-180º rotation angle to pilot ball, butterfly and plug valves.
Broad range of actuators, both Double Acting and Spring Return, from 17 to 5.000 Nm at 6 bar.
PRESSURE:
May be actioned with air or any nonagressive fluid up to 8 bar pressure (up to 15 bar, on demand).
NORMAL WORKING TEMPERATURE:
-32ºC to +90ºC (-50ºC to +90ºC, on demand).
INTERNALLY AND EXTERNALLY COATED BY CATAPHORESIS + RILSAN:
Manufactured with materials resistant to oxidation. Silicone free.
DOUBLE CORROSION RESISTANCE guaranteed.
CATAPHORESIS: Electrochemical process that provides high corrosion resistance by means of 20µ of uniform epoxy resin surface.
RILSAN: Polyamide 11 coating (250µ). Offers high resistance to corrosion, wearing and impacts.
Resistance to Saline Smog Room: B-117-73 > 1000h.
