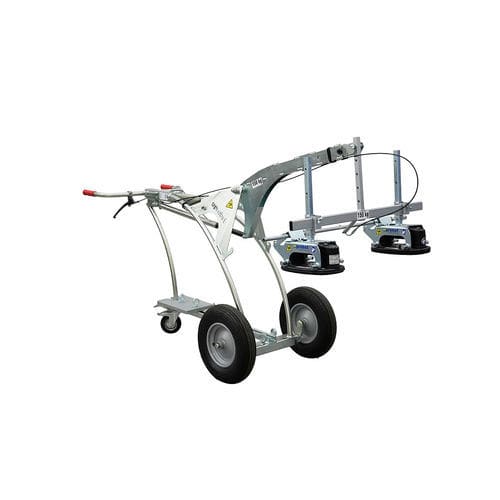

Suction slab laying machine UNIMOBIL UM-FXAH-CB

Fast and ergonomic lifting, moving and laying of large or up to two absorbent concrete slabs, natural stone, tiles and other absorbent building materials. With two optionally available FXAH-120-GRABO-GREENLINE or two FXAH-120-GRABO-PRO-LIFTER-GREENLINE vacuum lifters, the UM-FXAH-CB becomes a one-man device for suction-tight building materials. The vacuum lifters attach themselves when placed on the slab or tile. The release process is triggered simultaneously on both vacuum lifters by operating a hand lever. Further information  - One-person operation possible by controlling the extension arm or the removal process via hand lever.  - Possibility to pick up larger single slabs, tiles or 2 smaller slabs/tiles up to a total weight of 150 kg.  - Quick and easy attachment of the FXAH vacuum lifters without tools using spring latches.  - The distance between the FXAH vacuum lifters is adjustable from 200 mm to 800 mm.  - Telescopic arm and handle.  - Durable surface protection by galvanizing. Scope of supply FXAH-120-GRABO-GREENLINE: Vacuum hand laying device, Charger (multi-range voltage 110 V to 240 V, with interchangeable plug EU, US, UK, CN) 1 x lithium-ion battery, spare rubber seal and replacement filter. Supplied in lightweight soft case. FXAH-120-GRABO-PRO-LIFTER-GREENLINE: Vacuum hand laying device, Charger (multi-range voltage 110 V to 240 V, with interchangeable plug EU, US, UK, CN) 1 x lithium-ion battery, carrying strap, spare rubber seal and replacement filter. Supplied in a high-quality, waterproof plastic case.
