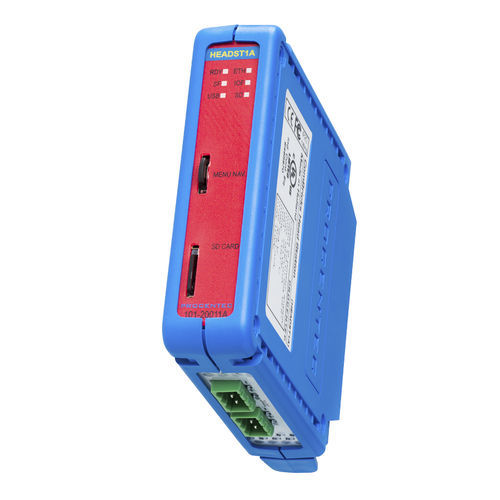

Power monitoring module 101-20011C

serverprocessEthernet

The Head Station is the primary element of ComBricks and has to be inserted in the most left slot of the fixed backplane socket. It schedules the interaction between all modules and provides data storage and an Ethernet interface for the user. Type 1C is an enhanced type that contain a ProfiTrace core for monitoring 4 PROFIBUS networks and an advanced web server for permanent remote maintenance of the PROFIBUS installation over Ethernet (hardware is identical as a type 1A). For monitoring repeater modules or slave modules are required to provide PROFIBUS telegrams on the backplane network. Through the ProfiTrace 2 software package, OPC tags can be directly streamed from the Head Station type 1C. ProfiTrace 2 will run with full monitoring functionality and the user can benefit from its features. The Head Station provides power to all modules through its redundant power supply. General 32 (10 repeater modules positioned in the first 10 slots) Redundant power supply uSD card holder for 32 GB (SD and SDHC) USB connector for firmware updates Ethernet 10 / 100 Mbps link speed Protocols: HTTP, FTP, SMTP, TELNET, SNMP, CommDTM Ethernet connector: RJ-45 Ethernet cable length: max. 100m Ethernet MAC address: 9C.B2.06.xx.xx.xx (label on the side of the Head Station) Ethernet default IP address after reset/purchase: 192.168.1.254 Ethernet connections: 20 simultaneous web server clients
