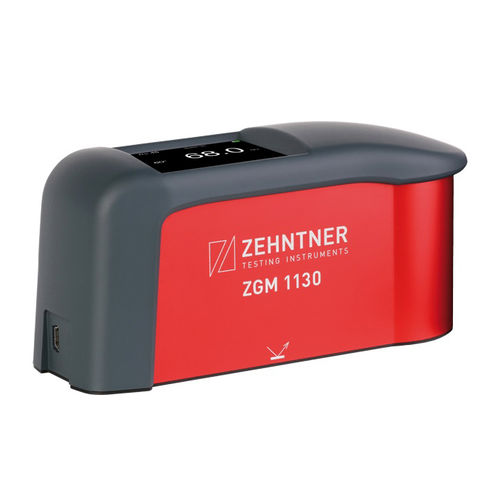

Single-angle gloss meter Zehntner ZGM 1130

three-angletwo-angledigital

Touchscreen Display for all Gloss Ranges The Zehntner ZGM 1130 is the very first glossmeter featuring a 2.4" touchscreen display for measurement of all gloss ranges from matt to high gloss up to 2'000 GU. The display is switchable for either a left-handed or right-handed user. Our precision milled monoblock optic ensures stable and reliable gloss measurements. This glossmeter's powerful stray light compensation allows exact measurements of transparent objects. It also features automatic calculation of "reflection haze H" with our dual and triple angle versions. GlossTools Data Analysis Software The included GlossTools software for Zehntner glossmeters allows simple administration and analysis of multiple types of reflective surfaces. Measuring results are transmitted directly to the computer and can be processed immediately. GlossTools Software Benefits • Several geometries can be displayed simultaneously. • On-going updated statistics of the gloss values (average, standard deviation, min, max). • Multi-language menu-guidance in English, Czech, French, German, Italian, Romanian, Swedish and Spanish. • Definition and storage of thousands of limit values and reference values for gloss range measurements and indication of pass/fail information. Direct Access to Measurement Data The Zehntner ZGM 1130 offers direct access to measurement data in csv-format without requiring software thanks to USB device functionality. This model also features single, multiple and even continuous scan gloss measurements and features easy to use multi-language menu guidance.
