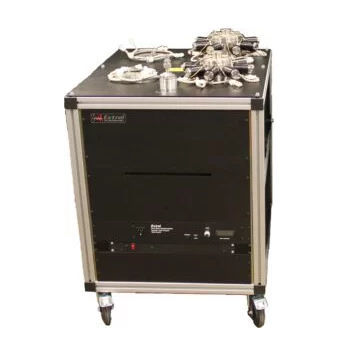

Gas analyzer EXTREL™

processflowmodular

Our EXTREL™ Quadrupole Lamp Analyzers have a long history of quality assurance measurements in Lamp Manufacturing. We have partnered with the major lamp manufacturers to engineer sampling solutions for hundreds of different lamp types has allowed us to become the premier supplier of fill gas analyzers to the lighting industry. Our Quadrupole Lamp Analyzer combines our proven process mass spectrometry technology with a specially designed inlet to test a multitude of lamp configurations. It has automatic testing capability for multiple lamp designs, and it can switch from automatic to manual operation for special tests. The modular design allows for analysis of different lamp types with the same instrument. The standard configuration of the Lamp Analyzer has four cassettes, each of which can hold eight small lamps. Once samples are loaded into the cassette, the analyzer will automatically break the lamps, flow the gas into the sample sink, and release the sample to the mass spectrometer for analysis. This automated analysis routine can be run for a single lamp or for all four cassettes: 32 lamps in total. The resulting analysis, gas pressure, and volume calculations are displayed in the user’s report. In addition to the basic standard configuration, Extrel has designed special sampling devices for other lamp types. Typically, these sampling arrangements replace one of the four standard cassettes. Our experience allows us to offer designs for new lamp types with ever-changing braking systems.
