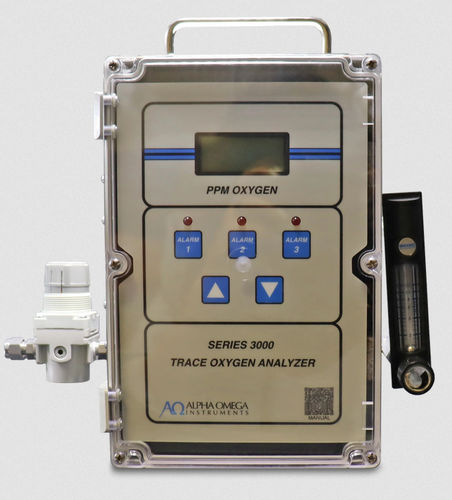

Oxygen analyzer ALPHA OMEGA INSTRUMENTS™ 3000™

processtracerugged

Precision market leading trace and percent oxygen analyzers and transmitters can protect your process, plant and personnel Our ALPHA OMEGA INSTRUMENTS™ Series 3000™ Trace Oxygen Analyzer is a rugged, microprocessor-controlled oxygen analyzer designed for continuous or intermittent measurement of trace oxygen concentrations. Range from 0-1 PPM to 0-10,000 PPM Available in single or three-range configuration. Auto-ranging for the latter is available at no additional charge The Series 3000 Trace Oxygen Analyzer is housed in a general-purpose enclosure and is powered from either a universal 100-240 VAC, 50-60Hz, or 18-32 VDC. Trace oxygen values are displayed on a 0.4 inch (10.2 mm) high, 4-1/2 digit liquid crystal display (LCD). The Series 3000 is equipped with three oxygen alarm relays and one status alarm relay. All four relays are Form C (SPDT) types rated at 10 amps at 115/230 VAC and 30 VDC. The relays are user configurable for fail-safe operation. In addition to the four alarm contacts, the analyzer has a built-in audible alarm and three red LEDs for visual indication of an oxygen alarm condition. The audible alarm may be manually canceled at any time. The Series 3000 provides users with two standard analog outputs, 4-20 mADC and 0-2 VDC. For enhanced communications, the analyzer can be equipped with optional RS-232C or RS-485 serial communications. Also available with an optional CO2 tolerant sensor. NEW – CO2 Resistant Sensor – a nemesis for many conventional “fuel cell” type trace oxygen sensors are their inability to measure oxygen in gases containing carbon dioxide
