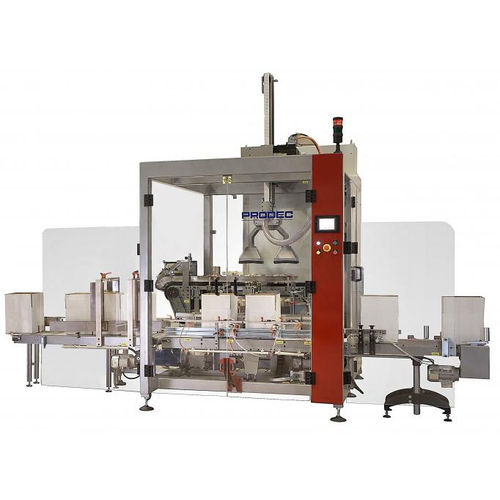

Pick-and-place case packer D-100

top-loadingautomaticfor bottles

Solution Top loading packer using Pick & Place Cartesian multiple case filling stations. The D-100 is a top packer with Pick & Place Cartesian system consisting of multiple case filling stations. The filling of cases is performed by a pick & place mechanism which supports several heads with speed which is adjustable according to product type. The system is expandable, depending on the required production output. The new generation DELTA machines are designed to solve any needs that arise in the final line by automating the packing phase. Flexible in its applications, the D-100 packer can be equipped with multiple power lines, thus also developing functional synchronization of the unit to a single line, regardless of the packing function. An additional mechanism allows rotation of the suction head to deposit the containers at different positions on each floor or line. The spindle includes packaging tape or product entry element. In the scroll cases, the pickup element performs a twist on its axis by placing the containers at 90° or 180° from the initial position. Unit formation and closure of independent cases. The D-100 packer, can be incorporated into the available spaces in each case, depending on the precise characteristics, the configuration that best suits the needs of both techniques is the economic preference. The design of this equipment, together with its easy adaptability to new formats or final submissions, provides a very good versatility for future applications.
