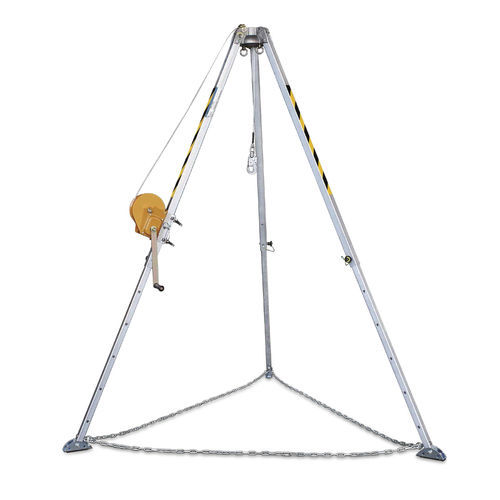

Mobile rescue device consisting of a tripod and a rescue winch and designed for access by people in confined spaces, wells, tanks, hatches and other underground work where protection against falls from a height is required.
EN 795:2012 Type B
EN 1496:2017 Class A
The structure consists of three adjustable telescopic legs made of anodized aluminum. The tripod base can be assembled and disassembled quickly and easily without the need for any tools.
• Height of use: Max: 240 cm. Min: 135 cm.
• Usage diameter: Max: 210 cm. Min: 114 cm.
• 5mm galvanized steel cable.
• The anchor points of the device have been successfully tested with a load of 100 kg.
• Maximum lifting distance: 20 meters.
• Manual locking system.
• Total weight of the equipment: 33 kg
When this tripod is used in conjunction with the hand winch, it is to be used for rescue purposes only.
This device is for one user only .
