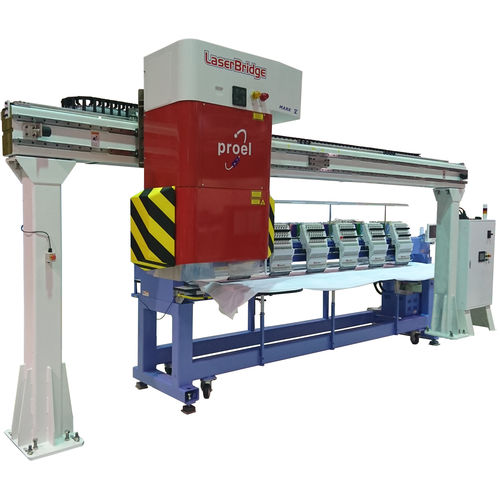

CO2 laser cutting machine LaserBridge

textilesheet metalPLC-controlled

The LaserBridge System may be used together with one or more slave devices (a machine or device that are suitable to be placed under the bridge structure and that will define its cutting plane). A slave device may be one or more Embroidery Machines of any maker or model (to cut directly on the embroidery frames) and/or a fixed or motorized Cutting Table (to cut pieces of material positioned on the table) and/or an Unrolling-Rolling system (to cut materials supplied in rolls). The current range of LaserBridge consists of a single version manufactured in different lengths so that it may be adapted to any Embroidery Machine or slave device. The LaserBridge is designed to grow along with your business; thanks to an "Extension" you can, at any time, decide to increase the length of the bridge structure in order to add on further Embroidery Machines or other slave devices. The LaserBridge provides flexibility, reliability, accuracy and quality, all at a very interesting price. LaserBridge is a CO2 Laser machine equipped with a 50, 100 or 200 Watt CO2 laser source with galvanometric laser beam movement system (galvanometer laser head). This kind of laser beam movement system allows achieving very high working speed and, in consequence, high productivity of laser cutting and laser engraving. MAIN FEATURES • Usable with any Multihead Embroidery Machine, regardless of model or maker. • 600x600mm laser cutting-laser engraving area on each head of the Multihead Embroidery Machine.
