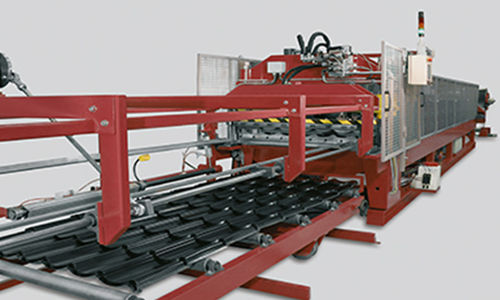

Panel production line

sheet metalautomaticconstruction

Includes: rollforming section, press, post-cutter for the end product, pre-cutter for the flat sheet, automatic stacker with motorized roller line and decoiler. 11kw Hydraulic unit for the press and the post-cutter. The rollformer has 16 chain-driven stations. The bottom shafts drive the machine and the drive has a 7.5kw electrical motor. •Under lapping side of the sheet has both water channel and capillary groove •Production speed is 8 metres per minute for a sheet length of 6000 mm •PLC control unit programmable pieces/lengths •Distance between pressings is adjustable •Distance for first pressing at the eaves is also adjustable
