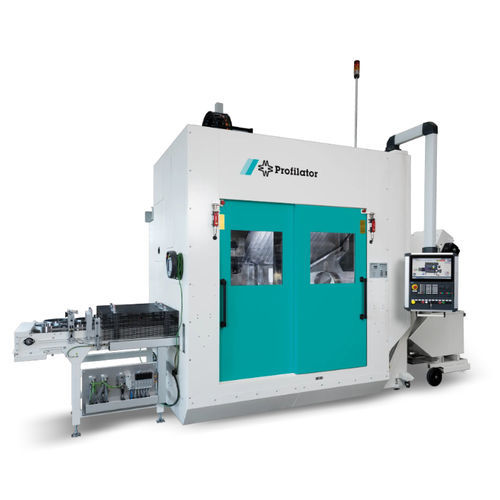

CNC gear-hobbing machine V-Type

Modular machine platform in a compact design for gear production Maximum flexibility due to the modular design, configurable for a wide variety of machining processes (e.g. Scudding®, hobbing, pointing, cycloidal milling, chamfering and deburring) State-of-the-art linear drives in the X and Y-Axis with torque-drive in the A-axis: – High machine dynamics for short cycle times – Highest levels of accuracy and low maintenance costs due to backlash-free and wear-free linear drives – High machine rigidity for HARD SCUDDING® application Optional tool changer for maximum machining flexibility User friendly interface for easy setup and programming Industry 4.0 capable, expandable with additional sensors for machine monitoring Multiple automation concepts available Easy setup and access due to open walk-in work area Configuration Example Configuration example for a SVE-330-VL-Twin for the machining SCUDDING®, hobbing, deburring and chamfering. The optional tool changer allows sequential machining with Scudding®as well as the integration of secondary processes such as rotary chamfering and many others. Scudding® of Stepped Gears Machining of parallel gear profiles with undercut, both gears are machinable with a double tool Scudding® of Internal Gears Cost-efficient production of internal gears with high flexibility Chamfer Cutting Chamfering of the entry and exit side by cutting in one setting with the Scudding®. Fast and precise chamfering process with minimal space requirement Scudding® of Shafts Production of rotors, drives, and shafts
