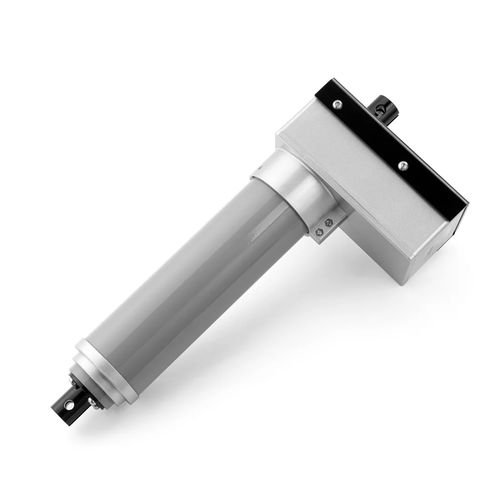

Telescopic actuator PA-TS1

linearelectricscrew

The PA-TS1 telescopic linear actuator has a 3-stage design that aids users in mounting the actuator in places that need a compact retracted length while still requiring a longer stroke. Hall effect sensors included within the telescoping actuator allow for synchronization, speed control, and position control. Hall effect feedback is crucial to applications where multiple actuators must travel in sync. It stands out from other models with its built-in feedback and telescopic designs that allow for a shorter retracted length than the stroke. The 12" and 24" stroke lengths come available as off-the-shelf options rated to handle a dynamic and static force of 270 lbs. It is a popular solution within the general automation, home automation, and medical industries. MOUNTING OPTIONS: The BRK-01 T-shape bracket and the BRK-02 U-shaped bracket are designed for the PA-TS1 linear actuator. CONTROL SYSTEMS: The PA-TS1 is compatible with the wireless PA-40-24VDC and PA-41-4-12V24V hall effect sensor control boxes as well as the wired FLTCON control box series.
