Linear actuator controller PA-40-24VDC

wirelesssynchronizedHall effect

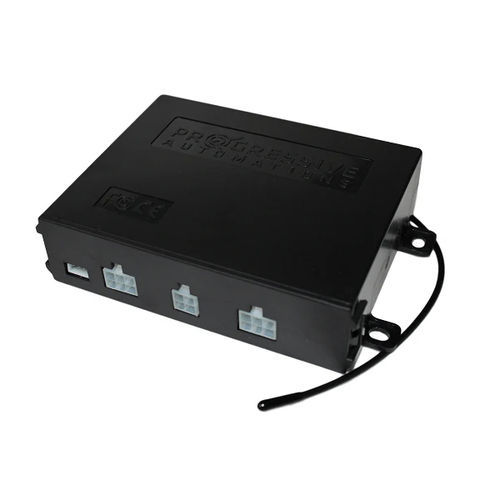

The PA-40-24VDC control box allows for synchronous control of two 24 VDC linear actuators with hall effect feedback. Like its 12 VDC counterpart, using the RF remote provided, users have the ability to extend, stop, and retract their synchronized actuators from up to 30-50 feet away (open-air). The control box has both momentary and non-momentary capabilities as well as an in-line fuse to protect against short circuits. Using the included wire harness, connect the linear actuators to the control box. Apply 24 VDC to the power wires, and the system will be ready to use. It's also important to ensure that the power supply has a sufficient amperage rating to control your linear actuators - the PA-40 is designed to handle a maximum of 10A per channel. Pair with the PA-VC1 to use a 12VDC power source on applications such as cars, boats, or tractors! Please see the PA-40-24VDC Data Sheet for information about controls, wiring, and troubleshooting! *The PA-40-24VDC is not compatible with actuators that have no limit switches. **Only compatible with 24 VDC hall effect type actuators. Controls 2 matching Hall Effect actuators simultaneously to travel the same speed together in the same direction.
