- Machine-tools
- Machining Center
- 3-axis machining center
- Promac S.r.l.

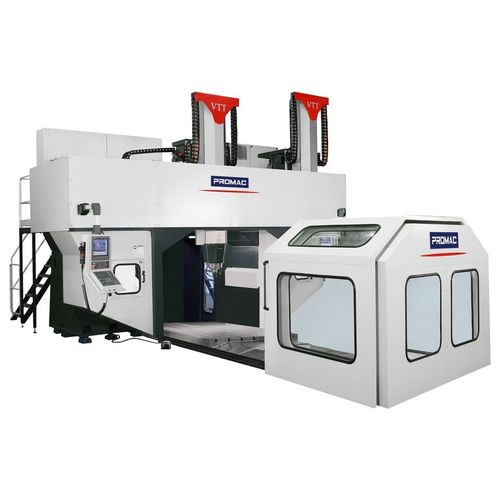

3-axis CNC machining center ZEPHYR VTT5-axis4-axisvertical
Add to favorites
Compare this product
Characteristics
- Number of axes
- 3-axis, 5-axis, 4-axis
- Spindle orientation
- vertical
- Structure
- with fixed portal, with moving table
- Machined material
- for steel, for composites
- Spindle mount
- HSK A-63, HSK-A 100
- Number of tool stations
- 40 tools, 32 tools, 120 tools, 20 tools, 64 tools, 22 tools, 200 tools, 300 tools
- Applications
- for the automobile industry, for molds, for the aerospace industry
- Other characteristics
- precision, high-speed, with pallet changer, automated loading/unloading, multi-spindle, tilting-head, mobile
- X travel
2,500 mm, 3,500 mm, 5,500 mm
(98.43 in, 137.8 in, 216.54 in)- Y travel
2,700 mm
(106.3 in)- Z travel
1,200 mm
(47.24 in)- Rotational speed
10,000 rpm, 20,000 rpm
(62,832 rad.min-1, 125,664 rad.min-1)- Power
27 kW, 36 kW, 37 kW, 44 kW
(36.71 hp, 48.95 hp, 50.31 hp, 59.82 hp)- Workpiece max height
1,300 mm
(51 in)- Work feed X-axis
30 m/min
- Work feed Y-axis
30 m/min
- Work feed Z-axis
30 m/min
- Table load capacity
15,000 kg
(33,069 lb)- Overall length
8,000 mm
(315 in)- Overall width
9,623 mm
(378.9 in)- Overall height
4,938 mm
(194.4 in)
Description
4° e 5° axis continuously and/or positioned on the first head
4° e 5° axis continuously and/or positioned on the second head
Table 2,000-3,000-5,000 x 2,000 mm
78-118-196x78 in
Catalogs
CNC MACHINE TOOLS
29 Pages
