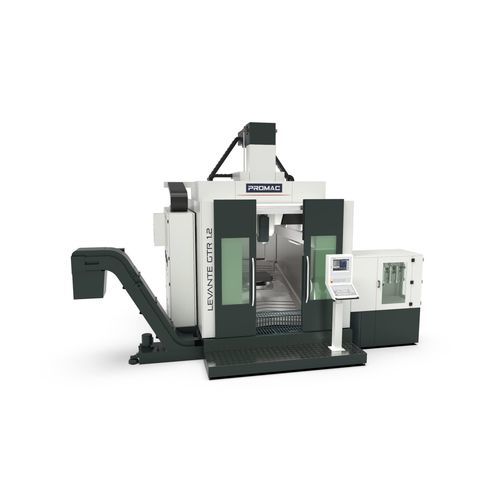

CNC machining center with rotary-translating table LEVANTE GTR5-axis4-axis6-axis
Add to favorites
Compare this product
Characteristics
- Number of axes
- 5-axis, 4-axis, 6-axis
- Spindle orientation
- vertical
- Structure
- with rotary table, with rotary-translating table
- Machined material
- for steel, for composites
- Spindle mount
- HSK A-63, HSK-A 100, Capto C8
- Number of tool stations
- 20 tools, 300 tools
- Applications
- for the automobile industry, for molds, for the aerospace industry
- Other characteristics
- with pallet changer
- X travel
1,600 mm
(62.99 in)- Y travel
1,200 mm
(47.24 in)- Z travel
800 mm
(31.5 in)- Rotational speed
20,000 rpm, 150,000 rpm
(125,664 rad.min-1, 942,478 rad.min-1)- Power
27 kW, 36 kW, 37 kW, 44 kW
(36.71 hp, 48.95 hp, 50.31 hp, 59.82 hp)- Workpiece max height
900 mm
(35 in)- Work feed X-axis
50 m/min
- Work feed Y-axis
50 m/min
- Work feed Z-axis
50 m/min
- Table load capacity
2,000 kg, 3,000 kg, 4,000 kg
(4,409 lb, 6,614 lb, 8,818 lb)- Overall length
2,870 mm
(113 in)- Overall width
4,445 mm
(175 in)- Overall height
4,655 mm
(183.3 in)
Description
Table 650x650 - 800x800 -1,000x1,000 mm
25.6x25.6- 31.4x31.4 - 39.3x39.3 in
Max tool lenght: 600 mm / 23.6 in
