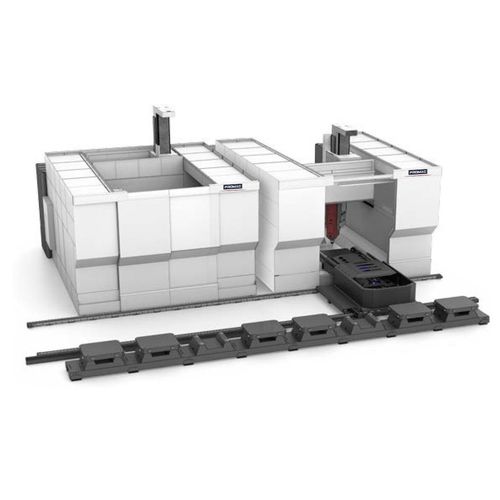

6-axis CNC machining center LEVANTE GTR-Dverticalwith rotary-translating tableinclined bed
Add to favorites
Compare this product
Characteristics
- Number of axes
- 6-axis
- Spindle orientation
- vertical
- Structure
- with rotary-translating table, inclined bed
- Machined material
- for steel, for composites
- Spindle mount
- HSK A-63, HSK-A 100, Capto C8
- Number of tool stations
- 40 tools, 60 tools, 120 tools, 20 tools, 80 tools, 200 tools, 300 tools
- Applications
- for the automobile industry, for molds, for the aerospace industry
- Other characteristics
- with pallet changer
- X travel
2,500 mm
(98.43 in)- Y travel
4,000 mm
(157.48 in)- Z travel
1,500 mm
(59.06 in)- Rotational speed
6,000 rpm, 15,000 rpm, 20,000 rpm
(37,699 rad.min-1, 94,248 rad.min-1, 125,664 rad.min-1)- Power
Min.: 27 kW
(36.71 hp)Max.: 53 kW
(72.06 hp)- Workpiece max height
1,500 mm
(59 in)- Work feed X-axis
50 m/min
- Work feed Y-axis
50 m/min
- Work feed Z-axis
50 m/min
- Table load capacity
12,000 kg
(26,455 lb)- Overall length
6,905 mm
(271.9 in)- Overall width
4,490 mm
(176.8 in)- Overall height
6,400 mm
(252 in)
Description
Pallet 1,200x1,000 mm / 47x39 in
Automatic head changer option
Max tool lenght: 1,200 mm / 47 in
