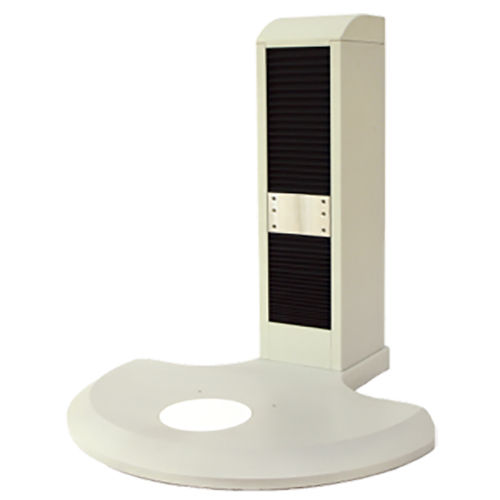

Z-axis microscope stand PRO-MLS

motorized

PRO-MLS is a motorized heavy-duty stand developed by PROMICRA suitable for microscopy as well as macro focus stacking applications. Almost any stereomicroscope can be motorized using PRO-MLS stand. The stand can be computer controlled by Deep Focus software module for automatic creating of fully focused (EDF) images. Features and Specifications • Motorized Z axis (travel and focusing) • Compatible with various optical devices (stereomicroscopes, macroscopes,…) and accessories (X-Y stages, LED illuminators…) • Compatible with backlight LED illuminators for transmitted illumination e.g. Schott VisiLED • High bearing capacity (up to 16 kg; 35 lb) and rigidity, silent running • Travel range 19.5 cm; 7.7 inch • Travel range protected by built-in limit switches. Vertical position of lower limit switch adjustable – video tutorial can be found here. • Minimal step 15 μm • Motorized column can be detached from the base and mounted e.g. to a desk or a table by 6 screws. • Suitable also for macro applications • Controlled by CB-ZM control unit (CB-ZM-MLS variant – required): • Focusing and Z-movement by UP and DOWN buttons • Change of focus speed using a SPEED button – 4 predefined speed levels available • Automatic speed incrementation when holding UP or DOWN button • Compatibility with Deep Focus Extended Depth of Field (EDF) module for QuickPHOTO software, optionally also in combination with HDR module for EDF + HDR imaging • Remote control by a two-button foot switch (optional) • CE certified and RoHS compliant • Dimensions: 45 (W) x 45 (D) x 47 (H) cm; 17.7 (W) x 17.7 (D) x 18.5 (H) inch • Weight: 20 kg; 44 lb
