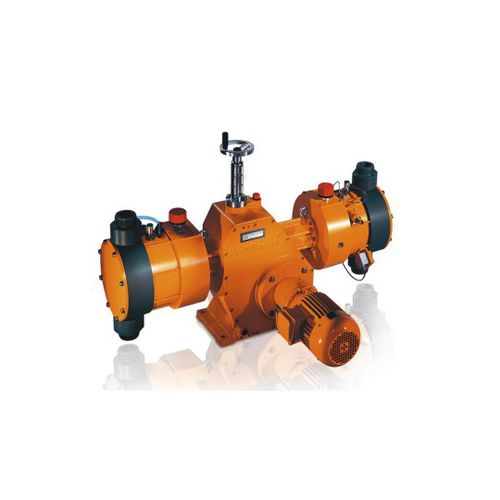

Chemical pump Makro/ 5
electricplungerindustrial

chemical pump
chemical pump
chemical pump
Add to favorites
Compare this product


Characteristics

Fluid
for chemicals
Operation
electric
Technology
plunger
Domain
industrial
Applications
metering
Protection level
ATEX
Flow

Max.: 6,014 l/h
(1,588.73072 us gal/h)

Min.: 38 l/h
(10.03854 us gal/h)

Pressure

Max.: 320 bar
(4,641.208 psi)

Min.: 6 bar
(87.023 psi)

Description

The plunger metering pump Makro/ 5 can virtually be used throughout the low-pressure range and its modular construction enables it to be outstandingly adapted to the performance requirements of the respective application. Powerful, built to last with a plunger The plunger metering pump Makro/ 5 (M5ka) together with the Makro/ 5 hydraulic diaphragm and diaphragm metering pumps, form a range of drive mechanisms with stroke lengths of 20 and/or 50 mm. A wide range of power end versions is available for use in areas at risk from explosion with ATEX certification. Your benefits Process reliability: Metering reproducibility is better than ± 0.5 % within the 10 – 100% stroke length range under defined conditions and with correct installation Excellent flexibility: The modular construction with single and double head versions permits a wide range of applications, with the double head designs being operated in push-pull mode It is possible to combine up to 4 metering units, even with different pump capacities, in multiple pump systems 5 different gear ratios are available Customised designs are available on request
