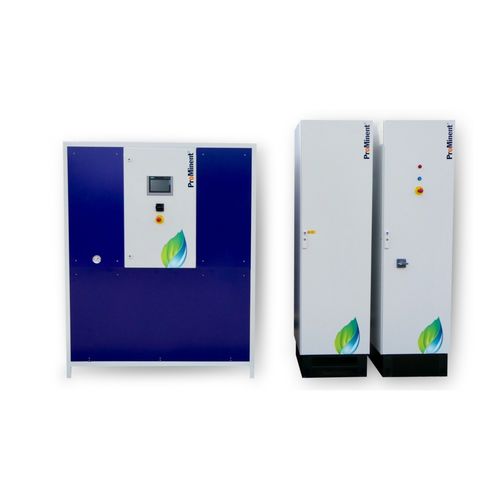

CHLORINSITU IIa XL is the recently developed tubular cell electrolysis system for in situ production of large quantities of hypochlorite. It is convincing with its ease of operation and outstanding efficiency combined with optimum process stability for the reliable disinfection of large volumetric flows.
High-performance tubular cell electrolysis
The new CHLORINSITU IIa XL is specially developed to meet the requirements of large-capacity in situ potable water disinfection. Based on the recently developed tubular cells, the system is a modular system for the safe production of hypochlorite solution from a diluted salt solution. Thanks to its precise production and optimised cell design, it achieves a high turnover of salt at a concentration of 8 g/l in the final product. The certified safety concept ensures the safe extraction of hydrogen and maximum operating safety. The CIIa XL is combined with the necessary modules, depending on the needs of the project, and is adapted as best as possible to the conditions on site.
Your benefits
Sole use of salt as the raw material
Very long service lives due to minimal maintenance and robust technology
Proven cell design with increased efficiency, only 3.2 kg NaCl/kg free chlorine
Modular design
Easy accessibility
Certified safety
