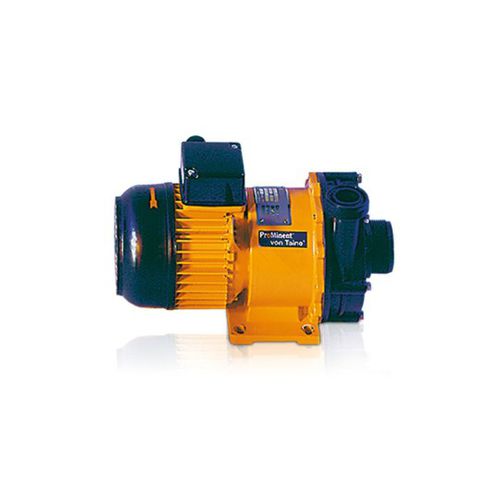

Centrifugal pump von Taine
for chemicalselectricmagnetic-drive

Centrifugal pump - von Taine - ProMinent Group - for chemicals / electric / magnetic-drive
Centrifugal pump - von Taine - ProMinent Group - for chemicals / electric / magnetic-drive
Add to favorites
Compare this product


Characteristics

Technology
centrifugal
Fluid
for chemicals
Operation
electric, magnetic-drive
Domain
for the chemical industry
Applications
metering, transfer, for transfer
Flow

Max.: 22,500 l/h
(5,943.87118 us gal/h)

Min.: 1,800 l/h
(475.50969 us gal/h)

Head

Max.: 23.5 m
(77'01" )

Min.: 4.5 m
(14'09" )

Power

Max.: 1,500 W
(2.04 hp)

Min.: 60 W
(0.08 hp)

Description

The solenoid-coupled centrifugal pump von Taine® for the pumping of liquid media works safely and reliably: liquid media are pumped leak-free. The safe and high-quality solution when liquid media need to be pumped leak-free. The von Taine® pump is a solenoid-coupled centrifugal pump. Thanks to the solenoid coupling, the pump transports the liquid medium from storage tank to storage tank without any leaks or even from a tank to a discharge line. The von Taine® centrifugal pump transports media at up to 22,500 l/h and up to a discharge lift of 23.5 metres. As the pump capacity is highly dependent on the back pressure, always observe the performance curve. Important note Check the material tolerability when selecting your pump. Take into consideration the density, viscosity and temperature of the medium to be transported. Please also note: The transported media should not contain any solid fractions. The pump is not self-priming and requires a feed. Your benefits Safe and reliable: Leak-free pumping of liquid chemicals Coupling between motor and impeller via magnetic coupling
