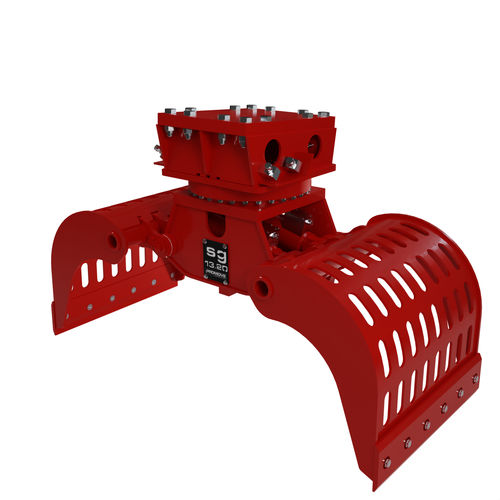

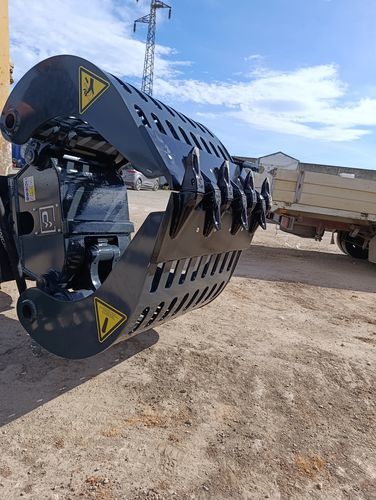

Hydraulic sorting grapple SG 13.20

Promove’s sorting grabs are the perfect solution for handling different types of material and for small demolition jobs. SG line main features are: compact design, low weight and continuous 360° hydraulic rotation. Equipment Weight 990 Kg Carrier weight 13-20 ton Oil Flow Open 50-60 l/min Working pressure 300 bar Rotation oil flow 20-25 l/min Rotation pressure 100 bar Closing Force 43 kN Height - A 1245 mm Useful Height - B 500 mm Max opening - C 1950 mm Width - D 910 mm Capacity 600 l
