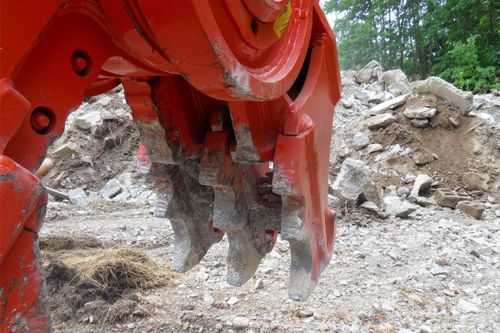

Primary demolition demolition crusher CP4000

for secondary demolitionfor concreterotary

The multi-processing CP crushers can be considered true demolition all-rounders. With one frame-one excavator-one operator and three different types of jaws they allow: Primary breaking of reinforced and oversized concrete structures and pillars; Secondary breaking, rebars cutting and separation from processed concrete for easy recycling of materials; Cutting of metal structures like industrial buildings, pylons, train cars, scraps processing, pipes and I, H, L, U beams, heavy industrial tires. Built in Hardox, anti-wear steel, the range includes models to fit excavators from 1,7 to 46 tons and heavier machines in high-reach configuration. Equipment weight 3385 Kg Carrier's weight (min/max) 34/46 ton Cylinder force 162 t Cylinders working pressure 350 bar Cylinder oil flow 300/350 l/min Rotation engine pressure 120 bar Rotation oil flow (Min/Max) 50/60 l/min Max jaws opening (A) PR1205 mm Max jaws opening (A) SC580mm Max jaws opening (A) FR1010 mm FR Kit (to be mounted on PR jaws)--- Total height (B) 2525 mm Rotation 360°hydraulic
