Inflatable shutter GDS

rubber

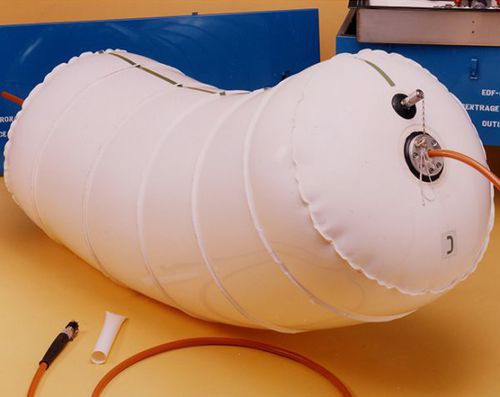

Inspections are often performed in nuclear power plants and rely on the use of Gamma rays. The purpose of these inspections is to detect any potential faults that could be found in the primary circuits. This is why Pronal has developed an inflatable tool for centering the source of radiation during gamma-radiography inspections of primary molded bends. These inflatable source-guiding stoppers are available in two sizes: 29″ and 31″. The stopper’s construction is based in the angle of the bend in question. It is assembled by high-frequency welding. This system is inflated at low pressure and manufactured using PMUC-certified materials (Products composed of Materials Usable in Power plants). ADVANTAGES Reliability •Tailor-made to the shape of the bend to inspect •Flexible and compact Safety •PMUC-certified material and stainless steel accessories •Highly resistant Handling •Easy to install and use DETAILED INFORMATION •Material: PMUC-certified polyurethane •Technique: assembled by high-frequency sealing •Form: cylindrical •Inflation: by air •Temperature resistance: -25°C / + 80°C •Max. inflation pressure: 50 mbar
