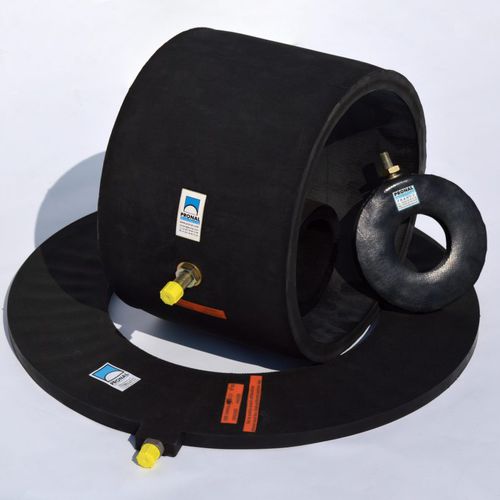

Inflatable cylinder

This range of annular inflatable jack is very efficient for isolation, clamping, clamping, pressing and handling applications. In the same register, we find the inflatable seal. This one is used for sealing between a hopper and the sleeve of a big bag. Customized, different materials and accessories are proposed to adapt to your environment and to your constraints of use: pressure, temperature, chemistry in contact, life span, fixation… In addition, our annular inflatable jacks are all made of elastomers or plastomers. Then, they are welded by high frequency or vulcanized in autoclave. When the product is empty, it is very thick. Therefore, you can integrate it in narrow places. When inflated, an annular inflatable jack can lift or push a very large load with an evenly distributed force. Advantages Handy to use Single air inlet Fast inflation Material that adapts to irregular surfaces Efficiency Thin when deflated Small size Sealed (rubber) contact zones Handling No mechanical parts No maintenance Long service life Detailed information Material: different kinds of elastomer coated fabrics (NPVC, SBR, Nitril, VAMAC, etc.) Manufacturing technique: hot vulcanization or high-frequency welding Standard dimensions: minimum diameter of 50 mm Custom dimensions: contact us Shape: donut or annular Inflation: air, water or oil Temperature resistance: up to 150°C depending on materials Max. inflation pressure: 7 bar or more depending on conditions of use Max. thickness: from 4 mm Lifting travel: depending on dimensions and application
