Heavy load lifting bag CC series

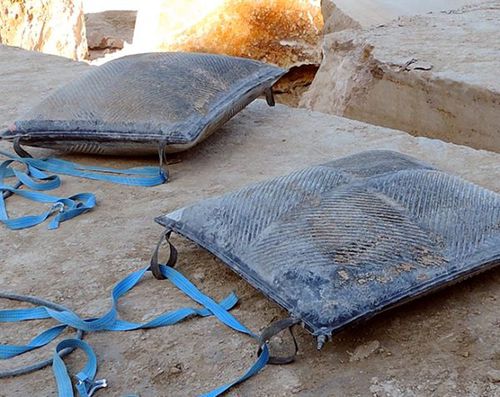

The Air lifting bag is part of the essential equipment dedicated to the extraction of blocks of marble, granite or any other stone. Indeed, its low thickness when empty allows it to be easily inserted in the sawing trenches. Several inflatable cushions are used simultaneously to spread the blocks of stone. They are maintained at a certain level by means of anchoring cables. In addition, filled with air via a compressor, the quarry airbag spreads the rock evenly. This is followed by overlapping or shifting of the cushions until the stone blocks are tilted. In the range of air lifting bags dedicated to the extraction of objects, you will also find the high pressure air lifting bag. Advantages Use Reusable a number of times Stackable Easy to insert Safety Safety factor of 3 (depending on conditions of use) Easy to use Handling Light and easy to carry Handling straps Small size Detailed information Material: NPVC coated cloth Manufacturing technique: hot vulcanisation in a vacuum autoclave Dimensions: 300 x 300 mm to 2800 x 2000 mm Inflation: air Temperature resistance: -20 to 60°C Max. inflation pressure: 6 bar Test pressure: 1 bar Max. thickness: 7 mm Lifting travel: 400 mm Safety factor: 3 (depending on conditions of use)
