Inflatable shutter OVO

for pipesrubberbypass

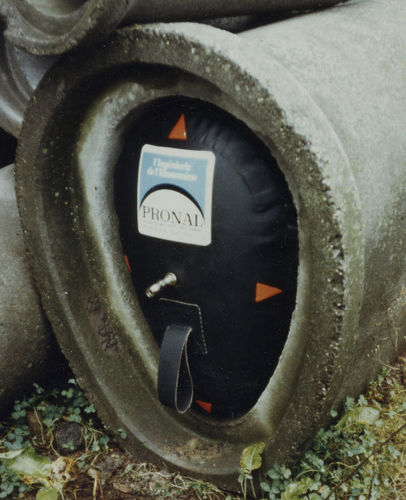

The egg shaped test plug OVO is used to close ovoid pipes and ovoid sections. These plugs are also suitable for water and air tightness tests according to DIN 4263 and NF P16-401. These pneumatic sealing systems can be equipped with bypass tubes. Indeed, this tube ensures the passage of gas or fluids during maintenance or testing. Moreover, it is made of a high resistance textile frame coated with vulcanized neoprene and assembled by cold gluing. The egg-shaped test plug is light, strong, resistant and quick to install. Advantages Reliability Low cost Total tightness Extremely durable Safety Secure inflation Highly resistant DIN 4263 and NF P16-401 Standards Installation Rapid installation Detailed information Material: Coated fabric 1200 daN/5 cm Technique: cold glue assembly Length: 600 > 2400 mm Inflation: by air Temperature resistance: -20 to +60°C (please contact us for any use outside of this temperature range) Max. inflation pressure: 0.8 bar Max. back-pressure: 0.5 bar Accessory: 1 x 3/4″ valve in the center of a base
