Fixed detector PQ Series

multi-gastoxic gasflammable gas

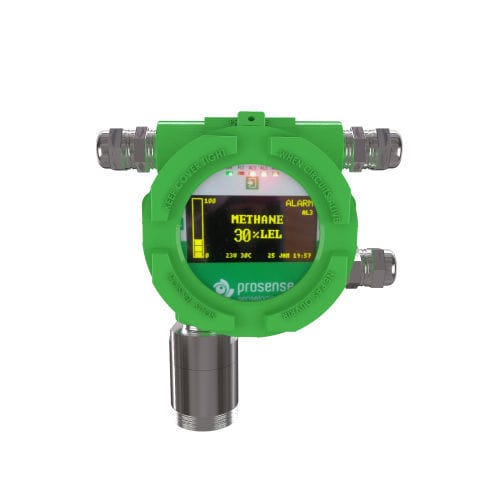

Prosense "PQ" Series fixed gas detectors have been designed and developed for the demanding conditions of the industry in order to perform continuous measurement of combustible, toxic, asphyxiate, and VOC gases in the environment. With ATEX / IECEx, SIL2 certifications, EN 60079-29: 1 performance approval and high ingress protection class, it has proved its suitability for harsh environmental conditions. PID, Pellistor, Electrochemical, Infrared, Semiconductor sensors employed PQ provides excellent output in LEL, ppm,ppb and VOL ranges. To provide the best solution to evolving industry conditions and customer demands, the PQ Series is classified as PQD (With Display) and PQN (Without Display). • OLED Display: 128x64 large, bright and clear display indicates gas level, detector status and it can be seen in dark locations and different angles easily • Non-Intrusive Calibration: Zero and Span calibration can be done by a single operator via using magnetic keys without opening the lid in the hazardous area. • Logging: Stores all alarm, fault, and maintenance events up 250logs to provide a history of the detector. Also, it protects the data thanks to the battery on itself • Monitoring: Gas concentration trends for the last 8 hours can be monitored on the OLED screen as it is recording the measurement data • Remote Control: PQ offers up to 15meters remote control option for applications that sensor and transmitter specifically require separate locations. Moreover, the detector status can be also monitored via Prosense Gas Monitoring software remotely. • Magnetic Control: Many settings can be adjustable via using a magnetic key.
