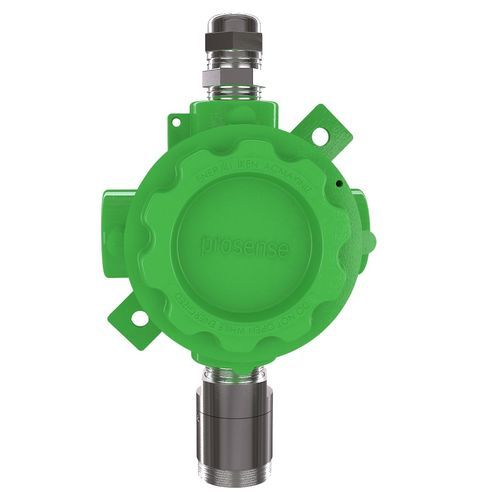

Catalytic detector PE Series

multi-gaspowerhumidity

ATEX/IECEx certified "PE" Series ex-proof gas detectors are designed and developed to detect explosive compounds in many applications as a cost-effective solution. Catalytic sensors employed PE Series provide excellent output in 0-100%LEL. • Sensor: Uses high-quality catalytic sensor specially designed to detect LPG, Methane, Petrol Vapour, Butane, Propane, and Hydrogen gases in 0-100%LEL. • Certification: ATEX and IECEx certified PE Series ready to use in explosive atmosphere safely • Connection: Provides universal standard 4-20mA analog output • Entry: 1 x 1/2″ NPT cable entries • Body: Aluminium die-cast body and sensor head superb performance under harsh environmental conditions with IP65 protection class. • Remote Control: Detector status can be monitored Prosense Gas Monitoring software remotely. • Relay Contacts: PE-2R+ relay module integrated PE Series detectors can manage other equipments or link to firefighting panels. Sensor Technology - Catalytic Output Signal - 4-20mA Analog Accuracy - %1 Sensor Warm-Up - 60sec Operating Temperature - -40°C ~ +70°C Response Time(T90) - <15sec Humidity - 5 ~ 95%RH Non-Condensing Input - Min 10VDC - Max 28VDC - Nominal 24VDC Power Consumption - Max. 4W Relay Outputs - 2 Relay Contacts (Alarm1-Fault or Alarm1-Alarm2) IP Rating - IP65 Junction Box - Epoxy Painted Die-Cast Aluminum Sensor Head - Nickel-Plated Brass Dimensions/Weight - 172,5x118,15x88mm / 1150gr ATEX Marking - II 2G Ex db IIC T4-T5 Gb Hazardous Class - Zone 1 or Zone 2
