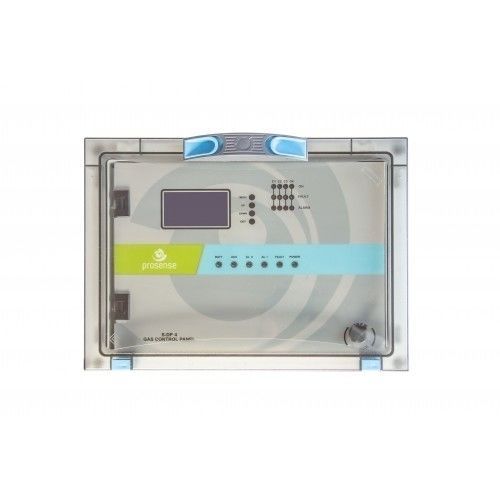

Gas alarm panel S-DP4

analogIP66

Prosense DP4 is an innovative gas control panel that meets tough industrial requirements. It allows monitoring explosive (LEL), toxic(ppm, VOL) gas contents in environment. The DP4 panel can manage up to 4xAnalog 4-20 mA signal gas detectors. • Input: 4 x 4-20mA analog and 1 digital(24VDC) input allows to the user managing detectors with integrating other equipment to the systems like emergency button. • Display: Bright and clear LCD display • Integrity: Easy integration to SCADA systems via Modbus RS485 output • Relays: 2 Alarm, 1 Fault and AUX adjustable relay contacts. Up to 12 extra relay outputs for specific applications • Logging: Stores all alarm, fault and maintenance events up 24logs to provide a history of detectors connected • Monitoring: Continuously monitoring of 4 detector gas concentrations • Remote Control: Up to 16 S-DP4 control panel can be monitored in one center via Prosense Gas Monitoring software. • Diversification: Different gases in different measuring ranges(ppm,LEL,VOL) can be connected • Body: PC(Polycarbonate) superb performance under harsh environmental conditions with IP66 protection class. • Visual/Audial: Independent Alarm and Fault LED indicators for each detector and buzzer • Modular: Modular structure allows the user specific installation and provide efficiency during the maintenance. Backup Battery Fuse - 2A Buzzer - YES Programming - User friendly software enables easy programming with 4 buttons on panel door Backup Battery - 2x12V 7A/h (Optional) Power Supply - 220 VAC +/?10% - 110VAC +/-10% Main Power Fuse - 2A Software Monitoring - Up to 16 panels can be monitored via Prosense Gas Monitoring software remotely
