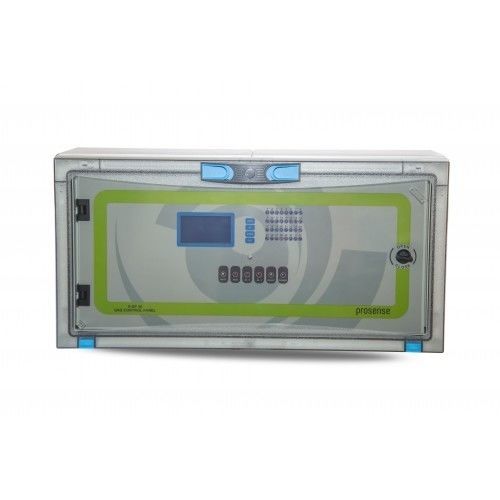

Gas alarm panel S-DP32

addressableprogrammableIP66

S-DP32 Gas Control Panel is designed to manage the Prosense combustible, toxic, and oxygen gas detectors via Modbus RS485 trough one cable. • Input: 1 serial input up to 32 detectors and 1 digital(24VDC) input • Display: Bright and clear LCD display • Relays: 2 Alarm, 1 Fault and AUX adjustable relay contacts. Up to 24 extra relay outputs for specific applications • Logging: Stores all alarm, fault and maintenance events up 30logs to provide a history of detectors connected • Monitoring: Continuously monitoring of detector gas concentrations • Diversification: Different gases in different measuring units(ppm,LEL,VOL) can be connected • Body: PC(Polycarbonate) superb performance under harsh environmental conditions with IP66 protection class. • Visual/Audial: Independent Alarm and Fault LED indicators for each detector and buzzer • Modular: Modular structure allows the user specific installation and provide efficiency during the maintenance. Buzzer - YES Programming - User friendly software enables easy programming with 4 buttons on panel door Power Supply - 220 VAC +/?10% - 110VAC +/-10% LED Indicators - 6 LED indicators for Alarm1, Alarm2, Fault, AUX, Battery and Power LED indicators Monitoring - Simultaneously monitoring measurements, alarm and fault status Dimensions/Weight - 546x276x186mm / 6 KG Relay Outputs - Programmable Fault, Alarm1, Alarm2, AUX contacts Adjustable NO/NC contacts Optional Alarm1, Alarm2, and fault relays for each detector Power Consumption - 27VDC/250mA?8,4W max. without connected detectors Display - Graphic LCD 128x64 Event Logging - Storages Alarm, Fault and maintenance logs up to 24 event
