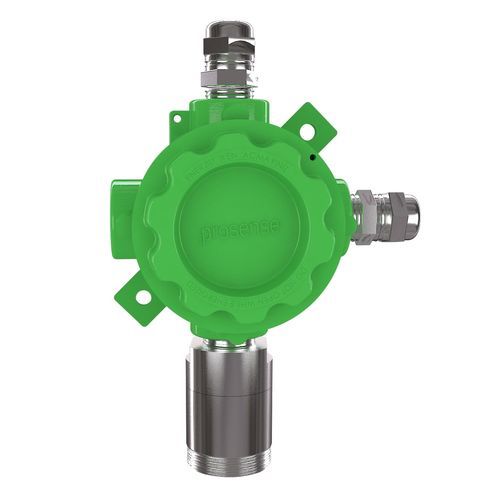

Single gas detector P-3435
powerhumiditycable

Single gas detector - P-3435 - Prosense Technology - power / humidity / cable
Single gas detector - P-3435 - Prosense Technology - power / humidity / cable
Single gas detector - P-3435 - Prosense Technology - power / humidity / cable - image - 2
Single gas detector - P-3435 - Prosense Technology - power / humidity / cable - image - 3
Single gas detector - P-3435 - Prosense Technology - power / humidity / cable - image - 4
Single gas detector - P-3435 - Prosense Technology - power / humidity / cable - image - 5
Single gas detector - P-3435 - Prosense Technology - power / humidity / cable - image - 6
Add to favorites
Compare this product


Characteristics

Detected entity
single gas, power, humidity, cable
Gas type
propane, NO
Technology
pellistor, gas
Application
industrial, monitoring, process, laboratory, for hazardous areas, for the pharmaceutical industry, for the food industry, for water treatment
Other characteristics
remote, IP66, addressable, integrated, LEL, pre-calibrated, ATEX
Output
Modbus, analog

Description

P-3435 Propane gas detector is designed to detect Propane in industrial areas. ATEX, IECEx certified P-3435 is ready to use in an explosive atmosphere. Pellistor sensor in P-3435 shows the excellent result in 0-100%LEL • Sensor: Uses high-quality Pellistor sensor specially designed to detect Propane • Modbus: It is easy to integrate SCADA systems via open-source Modbus RS485(RTU) codes • Outputs: Different devices can be operated/controlled at the same time thanks to the 4-20mA analog, Modbus RS485, and Relay outputs • Relay Contacts: P-3R+ relay module integrated P Series detectors can manage other equipment or it can be linked to firefighting panels. • Sensor Replacement: Allows sensor replacement with pre-calibrated sensor head to provide easy maintenance. • Installation: Designed for either wall or ceiling mounting applications • Entry: 2 x 1/2″ NPT cable entries • Remote Control: Detector status can be also monitored via Prosense Gas Monitoring software remotely. • Body: Aluminium die-cast body and SS316 stainless steel sensor head superb performance under harsh environmental conditions with IP65 protection class. Sensor Technology - Pellistor Output Signal - 4-20mA and Modbus RS485 RTU Sensor Warm-Up - 60sec Response Time(T90) - <20sec Accuracy - %±1 Operating Temperature - -40°C ~ +70°C Humidity - 5 ~ 95%RH Input - Min 10VDC - Max 32VDC - Nominal 24VDC Power Consumption - Max. 4W Relay Outputs - 2 Alarms (Selectable) and 1 Fault (All relays are NO/NC adjustable) IP Rating - IP65 / IP66 Junction Box - Epoxy Painted Die-Cast Aluminum Sensor Head - 316L Stainless Steel Dimensions/Weight - 183x118,15x88mm / 1420gr ATEX Marking - II 2G Ex db IIC T5/T4 Gb Hazardous Class - Zone 1 or Zone 2
