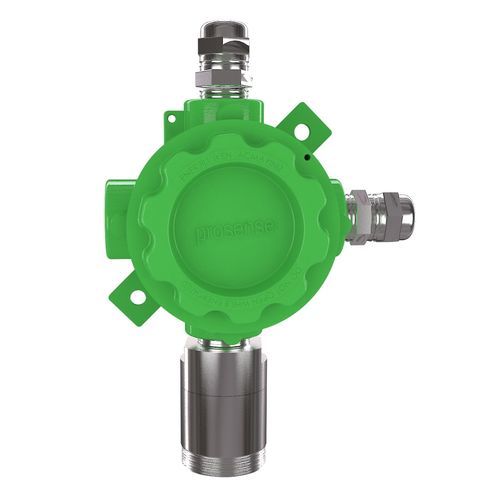

Single gas detector P-7133

powerhumiditycable

P-7133 Carbon dioxide gas detector is designed to detect Carbon dioxide gas in industrial areas. ATEX, IECEx certified P-7133 is ready to use in an explosive atmosphere. Infrared sensor in P-7133 shows the excellent result in 0-5000ppm. • Sensor: Uses high-quality Infrared sensor specially designed to detect Carbon dioxide • Modbus: It is easy to integrate SCADA systems via open-source Modbus RS485(RTU) codes • Outputs: Different devices can be operated/controlled at the same time thanks to the 4-20mA analog, Modbus RS485, and Relay outputs • Relay Contacts: P-3R+ relay module integrated P Series detectors can manage other equipment or it can be linked to firefighting panels. • Sensor Replacement: Allows sensor replacement with pre-calibrated sensor head to provide easy maintenance. • Installation: Designed for either wall or ceiling mounting applications • Entry: 2 x 1/2″ NPT cable entries • Remote Control: Detector status can be also monitored via Prosense Gas Monitoring software remotely. • Body: Aluminium die-cast body and SS316 stainless steel sensor head superb performance under harsh environmental conditions with IP65 protection class. Sensor Technology - Infrared Output Signal - 4-20mA and Modbus RS485 RTU Sensor Warm-Up - 60sec Response Time(T90) - <30sec Accuracy - %±1 Operating Temperature - -40°C ~ +70°C Humidity - 5 ~ 95%RH Input - Min 10VDC - Max 32VDC - Nominal 24VDC Power Consumption - Max. 4W Relay Outputs - 2 Alarms (Selectable) and 1 Fault (All relays are NO/NC adjustable) IP Rating - IP65 / IP66 Junction Box - Epoxy Painted Die-Cast Aluminum Sensor Head - 316L Stainless Steel Dimensions/Weight - 183x118,15x88mm / 1420gr ATEX Marking - II 2G Ex db IIC T5/T4 Gb
