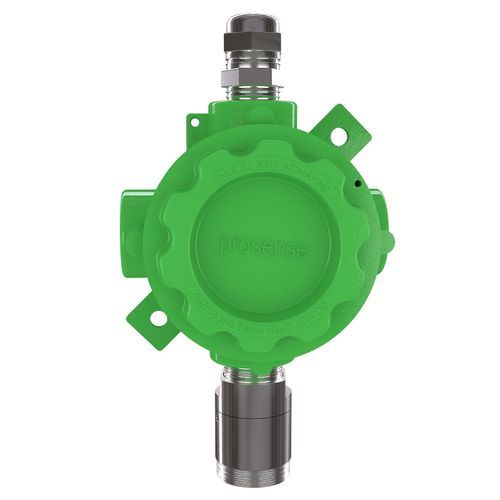

Gas detector PE-KAYO Series

motionpowerhumidity

PE-KAYO Series specially designed for the Oil&Gas stations as it has multiple functions. The detector has a special accelerometer chip inside to monitor physical bumps happening on the location where the device installed along with gas measurement functions. It can generate an alarm to cut the gas and oil flow if a car or truck hits the detector or the mounted shaft. Moreover, the Catalytic sensor employed PE-Kayo shows excellent output in 0-100%LEL range. • Sensor: Uses high-quality catalytic sensor specially designed to detect LPG, Methane, Petrol Vapour, Butane, Propane, and Hydrogen gases in 0-100%LEL. • Certification: ATEX and IECEx certified PE Series ready to use in explosive atmosphere safely • Connection: Provides universal standard 4-20mA analog output • Entry: 1 x 1/2″ NPT cable entries • Body: Aluminium die-cast body and sensor head superb performance under harsh environmental conditions with IP65 protection class. • Remote Control: Detector status can be monitored Prosense Gas Monitoring software remotely. • Relay Contacts: P-3R+ relay module integrated PE Series detectors can manage other equipments or link to firefighting panels. Sensor Technology - Catalytic, Motion Sensor: 3 axis (3D accelerometer) Output Signal - 4-20mA and Modbus RS485 Sensor Warm-Up - 60sec Response Time(T90) - <15sec Accuracy - %1 Operating Temperature - ‐40°C ~ +70°C Humidity - 5 ~ 95%RH Non-Condensing Input - Min 10VDC - Max 32VDC - Nominal 24VDC Power Consumption - Max.4W Relay Outputs - 2 Alarms (Selectable) and 1 Fault Cable Entry - 1/2"NPT IP Rating - IP65
