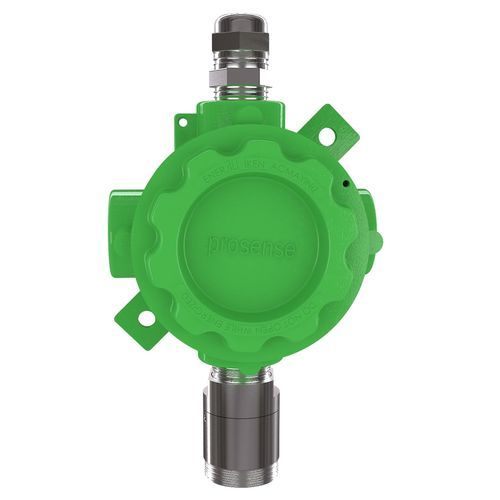

Motion detector PE KAYO-3312

voltagepowerhumidity

PE-KAYO Series specially designed for the Oil&Gas stations as it has multiple functions. The detector has a special accelerometer chip inside to monitor physical bumps happening on the location where the device installed along with gas measurement functions. It can generate an alarm to cut the gas and oil flow if a car or truck hits the detector or the mounted shaft. Moreover, the Catalytic sensor employed PE KAYO-3312 for Butane shows excellent output in 0-100%LEL range. • Sensor: Uses a high-quality catalytic sensor specially designed to detect Butane gas in 0-100%LEL and motion sensor to detect an impact. • Certification: ATEX and IECEx certified PE KAYO-3312 is ready to use in an explosive atmosphere safely. • Connection: Provides 4-20mA, Modbus RS485, and Voltage outputs • Entry: 1 x 1/2″ NPT cable entry • Body: Aluminium die-cast body and sensor head superb performance under harsh environmental conditions with IP65 protection class. • Remote Control: Detector status can be also monitored via Prosense Gas Monitoring software remotely. • Relay Contacts: With the P-3R+ relay module PE Kayo detectors can manage other equipment a siren, a beacon or can be linked into firefighting panels. Standards - IEC EN 60079-0 IEC EN 60079-1 IEC EN 60079-18 Certificates - IMQ 19 ATEX 045 X IECEx IMQ 18.0009X Sensor Technology - Catalytic and Motion Sensor Output Signal - 4-20mA Analog, Modbus RS485 RTU and Voltage Sensor Warm-Up - 60sec Response Time(T90) - <15sec Accuracy - %±2 Operating Temperature - -40°C ~ +70°C Humidity - 5 ~ 95%RH Non-Condensing Input - Min 10VDC - Max 28VDC - Nominal 24VDC Power Consumption - Max. 4W
