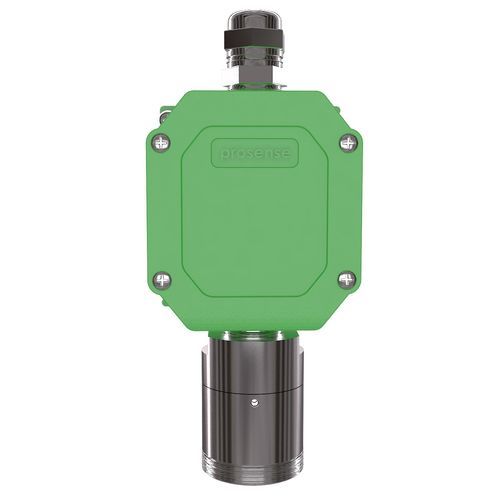

Gas detector PC3-6924

powerhumiditycable

As a Zone 2-Category 3 device, the PC3-6924 Chlorine gas detector is designed for continuously monitoring Chlorine in the light industrial areas. High-quality catalytic sensor in PC3-6924 shows excellent results in 0-10ppm range. • Sensor: Uses high-quality electrochemical sensor to detect Chlorine gas in 0-10ppm range. • Connection: Provides universal output 4-20mA and Modbus RS485 • Entry: 1 x 1/2″ NPT cable entry • Body: Aluminium die-cast body and sensor head superb performance under harsh environmental conditions with IP65 protection class. • Remote Control: Detector status can be monitored through Prosense Gas Monitoring software remotely. • Modbus: Easy to integrate into SCADA systems via open-source Modbus RS485(RTU) codes • Relay Contacts: 2 Alarm, 1 Fault relays can be set predefined levels and they can manage the other devices like a siren, a beacon in case of any event. Sensor Technology - Electrochemical Output Signal - 4-20mA Analog Modbus RS485 RTU Sensor Warm-Up - 60sec Response Time(T90) - <30sec Accuracy - %±1 Operating Temperature - ‐20°C ~ +50°C Humidity - 5 ~ 95%RH Non-Condensing Input - Min 10VDC - Max 32VDC - Nominal 24VDC Power Consumption - Max.2W Relay Outputs - 2 Alarms (Selectable), and 1 Fault (All relays are NO/NC adjustable) Cable Entry - 1x 1/2"NPT IP Rating - IP65 Junction Box - Epoxy Painted Die‐cast Aluminium Sensor Head - Nickel‐plated Brass Dimensions/Weight - 230x120x100mm / 1100gr
