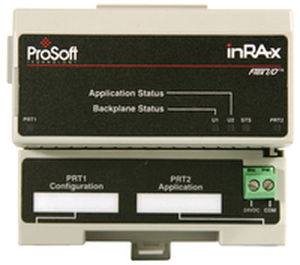

Industrial interface module MVI94-DNP

The module supports DNP Subset Level 2 features and some of the Level 3 features allowing the many SCADA and field devices supporting the DNP protocol to be integrated into the Flex platform. The module acts as an input/output module between the DNP network and the Flex backplane. The data transfer from the Flex processor is asynchronous from the actions on the DNP network. Databases are user defined and stored in the module to hold the data required by the protocol. The MVI94-DNP module is the ideal solution for many applications where DNP 3.0 master and/or slave protocol connectivity must be added to a FLEX system. The DNP solution is designed to address the expanding interest in the DNP 3.0 protocol. The protocol was originally developed for the power utility industry and is recommended by the IEEE for RTU-IED communication applications. Additional industrial applications are quickly arising in the water/wastewater and oil & gas industries.
