Chemical product pressure regulator 4B-125 series
diaphragmsingle-stage4-20 mA

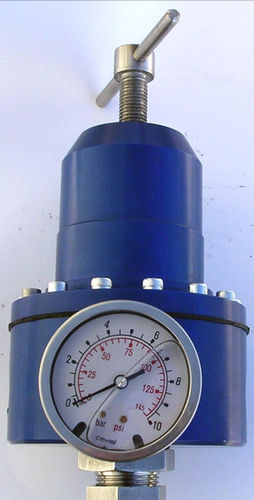

Chemical product pressure regulator - 4B-125 series - PROTAIS-VIGIL HYDROPNEU TECHNOLOGIC - diaphragm / single-stage / 4-20 mA
Chemical product pressure regulator - 4B-125 series - PROTAIS-VIGIL HYDROPNEU TECHNOLOGIC - diaphragm / single-stage / 4-20 mA
Add to favorites
Compare this product

Go to the PROTAIS-VIGIL HYDROPNEU TECHNOLOGIC website for more information

Characteristics

Product
for chemical products
Technology
diaphragm
Number of stages
single-stage
Output signal
4-20 mA
Material
brass, brass, light alloy, PTFE, NBR
Applications
industrial
Other characteristics
high-flow, small
Pressure

Min.: 0 psi

Max.: 430 psi

Orifice diameter

0.75 in, 1 in

Temperature

Min.: -30 °C
(-22 °F)

Max.: 90 °C
(194 °F)

Description

High flow diaphragm controlled regulator with balanced poppet Small envetop Wide range of connection Technical spécification • Diaphragm controlled regulator • Diaphragm, seat packing and seal mode of NBR, FPM or PTFE • High flow Cv : 4.5 • Non corrosive fluid : brass or lightweight alloy body, • Connection : 3A" BSP or NPT 1" BSP or NPT or flange ISO, ASA or SAE Options •Inlet filter •Outlet gauge •Safety valve •Diaphragm and packing seat PTFE •Nickel or chrome ptated regulator •Panel mounting •Locked outlet pressure • Corrosive fluid : staintess Steel 316 L body and bonnet •Other material available monel, hastelloy, inconel,, titaniu
