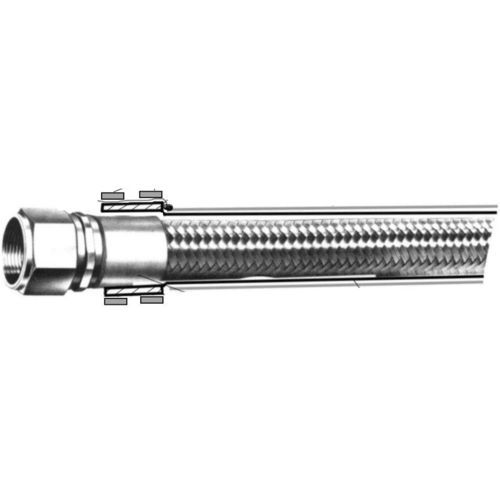

Pneumatic hose T1700S-AF seriesPTFEstainless steelEPDM
Add to favorites
Compare this product
Characteristics
- Use
- pneumatic
- Material
- EPDM, stainless steel, PTFE
- Applications
- high-pressure
- Other characteristics
- abrasion-resistant, standard
- Inner diameter
Min.: 2.8 mm
(0.11 in)Max.: 28.5 mm
(1.122 in)- Outer diameter
Min.: 13 mm
(0.512 in)Max.: 54 mm
(2.126 in)- Pressure
280 bar, 350 bar, 360 bar
(4,061.057 psi, 5,076.321 psi, 5,221.359 psi)- Temperature
Min.: -54 °C
(-65.2 °F)Max.: 232 °C
(449.6 °F)- Delivered length
7.5 m, 10.5 m
(24'07" , 34'05" )
Description
HYDROPNEU TECHNOLOGIC can also supply very high pressure hose (up to 840 har) with conductive and post sintered innercore to convey hydraulic, pneumatic fluid or other high pressure application.
This hose developed for very demanding application specially for aerospace application lias a conductive post sintered innercore with a stainless Steel braid. It is equipped with a anti whipping device consisting of the cable protected by an additional outside braid and an EPDM sleeve which allow a small outer diameter.
The fitting used on these hose are generally stainless Steel similar to the fitting used for Serie T1700 conforming to aerospace and industrial standard.
