- PROTAIS-VIGIL HYDROPNEU TECHNOLOGIC

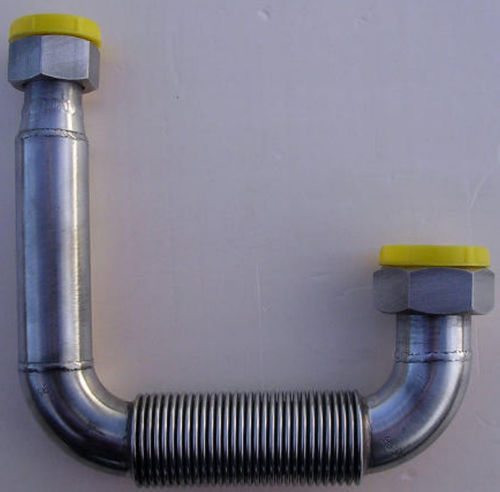

Gas hose HPB9 seriesstainless steelhigh-temperaturelow-temperature
Add to favorites
Compare this product
Characteristics
- Use
- for gas
- Material
- stainless steel
- Applications
- high-pressure, high-temperature, low-temperature
- Other characteristics
- flexible, cryogenic, braided, flange
- Inner diameter
Max.: 250 mm
(9.843 in)Min.: 6 mm
(0.236 in)- Outer diameter
Max.: 292 mm
(11.496 in)Min.: 10 mm
(0.394 in)- Pressure
Max.: 250 bar
(3,625.943 psi)Min.: 0 bar
(0 psi)- Temperature
Max.: 650 °C
(1,202 °F)Min.: -270 °C
(-454 °F)
Description
Flexible stainless steel innercore manufactured from thin wall but welded tube
Profil :
Standard pitch
Braid
AISI 304 (Z6 CND 18-09) or AISI 321 (Z6CNDT 18-10)
Fittings
Male, female and flange connection meeting requirements of all industrial and aerospace standards.
Fittings can be supplied in any available material.
They are brazed or TIG welded.
Applications :
Extreme temperature use
Medium, high pressure use at very low or very high temperature
Compressed gas, cryogenic application (nitrogen, oxygen, helium, etc..)
Corrosive flex
Other PROTAIS-VIGIL HYDROPNEU TECHNOLOGIC products
Flexible hoses
