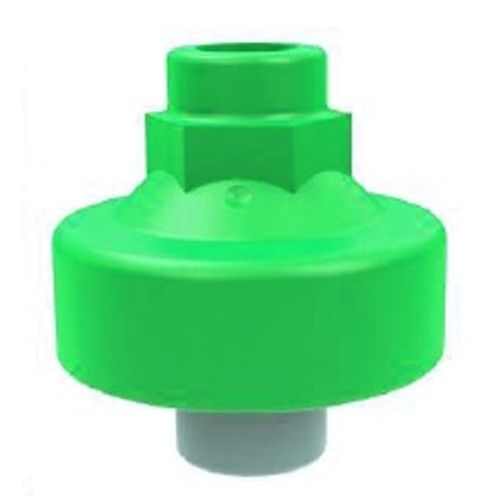

Diaphragm seal with threaded connection S90-2 P series
hygienicmeasurement

Diaphragm seal with threaded connection - S90-2 P series - PROTAIS-VIGIL  HYDROPNEU TECHNOLOGIC - hygienic / measurement
Diaphragm seal with threaded connection - S90-2 P series - PROTAIS-VIGIL  HYDROPNEU TECHNOLOGIC - hygienic / measurement
Add to favorites
Compare this product


Characteristics

Installation system
with threaded connection
Domain
measurement, hygienic
Pressure

Min.: 2 bar
(29.01 psi)

Max.: 16 bar
(232.06 psi)

Description

Allow to insulate the measurement component of a pressure gauge, sensor or pressure switch from corrosive, pasty or coagulated fluid. The pressure of the measured product is transmitted to the measurement instrument through a diaphragm (stainless steel, monel, inconel, hastelloy, tantalum, teflon) and a fluid (generally oil). The measurement instrument and its diaphragm seal, vacuum filled in the workshop, form a complete assembly. SOME PARTICULAR APPLICATIONS Level measurement on tank bottom Level measurement in pressurized enclosure Hygienic pressure measurement Fluid control at temperatures 50°C to +370°C. Measurement of crystallized products
