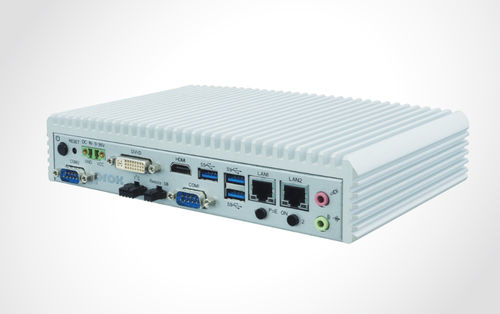

Embedded PC SE-8134

boxIntel® Celeron® J3455Intel® Celeron® N3350

Intel ® Atom™ / Pentium® / Celeron ® Processor Compact and Fanless Embedded PC ● Intel® Atom™ E3950 / Pentium ® N4200 / Celeron® N3350 / Celeron ® J3455 ● HDD easy maintenance design ● Three independent displays (2 x HDMI up to 4K + DVI-D) ● Multiple I/O port (2 x LAN with PoE + 4 x USB 3.0 + 4 x COM + DIO + I²C) ● Expansion slot (2 x full-sized Mini PCIe + SD slot + 2 x SIM slot) ● Support 4 x antenna holes ● Support power remote switch ● Wide-ranged voltage DC In (9~36V) ● Wide-ranged temperature (w/ E3950) ● TPM module (optional) System SE-8134 CPU Support Intel ® Celeron N3350, 2C, 2.4GHz Intel ® Celeron J3455, 4C, 2.3GHz Intel ® Pentium N4200, 4C, 2.5GHz Intel ® Atom™ x7 E3950, 4C, 1.8GHz Memory Support 1 x DDR3L 1600/1867MHz SO-DIMM socket, memory up to 8GB API Watchdog / HW monitor / Digit IO / I²C Drive Bay 1 x 2.5" SATAIII HDD or SSD drive space Power Input DC In 9~36V Power Adapter DC In 24V, 72W or 120W (optional) Operating System Windows 10 IoT Enterprise LTSB 2016 64bit / Ubuntu16.04 LTS Expansion Slots 1 x full-sized Mini PCIe (with mSATA or 3G/4G card with USB 2.0 signal) 1 x full-sized Mini PCIe (with PCIe or 3G/4G card with USB 2.0 signal) 1 x SD slot 2 x SIM slot System Weight 2 kg Dimensions 217.5 x 45 x 148 mm (W x H x D) Certifications FCC / CE I/O Ports (Front side) USB 1 x USB 3.0 Serial Port s COM 3/4 for RS232 Display 1 x HDMI 1.4b (up to 3840 x 2160) LED 1 x power LED, 1 x HDD LED Antenna Hole 4 x antenna holes Drive Bay 1 x 2.5" SATAIII HDD or SSD drive space SD Card 1 x SD slot SIM Card 2 x SIM slot Digital I/O 4 in / 4 out
