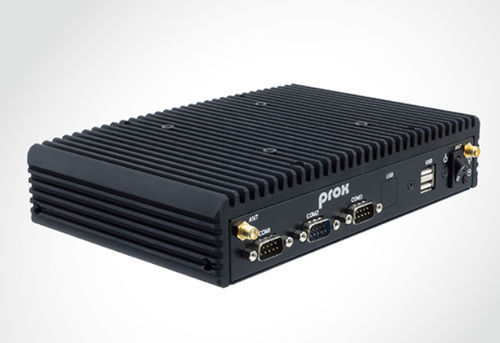

Embedded PC BS-E098

Intel® Celeron® N3350Intel® AtomIntel® Pentium® N4200

Fanless Embedded PC 12V / DP Intel® Atom™ / Celeron® N3350 / Pentium® N4200 Intel® N3350 / N4200 SoC Fanless and slim design 2 x LAN, 6 x USB, 4 x COM, 1 x VGA, 1 x DP Supports 1 x 2.5" HDD, 1 x full-sized mSATA CPU Support Intel ® Celeron ® N3350: 6w, 2C, 2.4GHz Intel ® Pentium ® N4200: 6w, 4C, 2.5GHz Memory Support 1 x SO-DIMM socket, supporting 1600/1866MHz DDR3L memory up to 8G (non-ECC) API/SW/FW Watchdog / HW monitor / fTPM Storage Support 2.5" 7mm SATAIII HDD or SSD drive space Power Input DC 12V only Power Adapter 60W adapter w/ lockable 3 pin terminal block (optional) Operating System Windows 10 64bit / Ubuntu17.04 (kernel: 4.4) / Android (TBD) Expansion Slots 1 x full-sized mSATA slot (with SATA and USB signal) 1 x full-sized mPCIe slot (with PCIe and USB signal) System Weight 2 kg Dimensions 218 x 45 x 148 mm (W x H x D) Certifications FCC / CE I/O Ports (Front side) USB 2 x USB 2.0 Serial Ports COM 1: RS232 COM 2: RS232/422/485 (selectable under BIOS) COM 3: RS232 with RI/5V/12V selectable by jumper LED 1 x power LED, 1 x HDD LED Antenna Hole 2 x antenna holes (supports up to two optional antenna) Power On/Off 1 x power button I/O Ports (Rear side) Power Input 3 pin DC In terminal block (lockable), supporting 12V DC In Serial Ports COM 4: RS232 with RI/5V/12V selectable by jumper Display 1 x VGA, 1 x DP LAN 2 x LANs (supports Wake-On-LAN) LAN 1: Intel® I210 LAN 2: Intel ® I210 Audio 1 x Line Out USB 4 x USB 3.0
