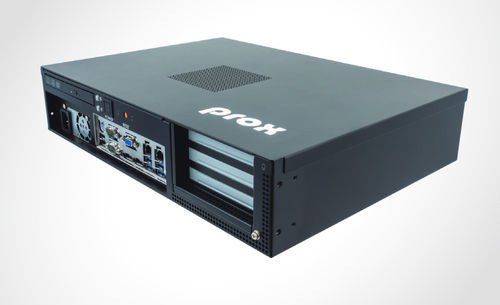

● 310mm short depth, front I/O 2U chassis
● Supports Intel® 10th Gen. Core™ i9 / i7 / i5 / i3 / Xeon® W-1200 CPU
● Supports 2 x Full size Expansion Card (option with Riser Card)
● Supports 1 x 3.5" HDD or 2 x 2.5" HDD/SSD
● Equipped with 300W single power supply
● Support 1 x M.2 slot support NVMe (PCIex4) for storage
● Support 1 x LPC connector for TPM module
● Easy-to-replace air filters
System
CPU Support LGA1200 socket for Intel® 10th Gen. Core™ i9 / i7 / i5 / i3 /
Pentium®/ Celeron® desktop CPU/ Xeon® W-1200 server CPU
CPU List Xeon®: W-1290E(TE), W-1270E(TE), W-1250E(TE)
10th Gen. Core™: i9-10900E(TE), i7-10700E(TE),
i5-10500E(TE), i3-10100E(TE)
Pentium®: G6400E, G6400TE
Celeron®: G5900E, G5900TE
Chipset Intel® W480E (support Xeon® / Core™ / Pentium® / Celeron® CPU)
Intel® Q470E/H420E (support Core™ / Pentium® / Celeron® CPU)
Memory Support W480E/Q470E:
4 x DIMM sockets, support 2933MHz DDR4 up to 64GB
support 2666MHz DDR4 up to 128GB
H420E:
2 x DIMM sockets, support 2666MHz DDR4 up to 64GB
Supports ECC (W480E)/non-ECC (all SKU)
BIOS AMI UEFI BIOS
Power Supply ATX 300W Power Supply
Drive Bay Supports 2 x 2.5" HDD/SSD or 1 x 3.5" HDD
Supports 1 x Slim ODD
System Fan 2 x 80x80 mm System Fan
3 x Air Filter
Notification LED 1 x Power LED
1 x HDD LED
Power / Reset Button 1 x Power Button
1 x Reset Button
Dimensions 480 x 88 x 310.1 mm (with handle)
(W x H x D) 428.2 x 88 x 310.1 mm (non handle)
Expansion Slots PCIeX16 Riser Card + PCIeX16 Extended Card (1 set)
(option) PCIeX4 to PCI Riser Card or PCIeX4 Riser Card
Weight 6.2 kg (13.67 lb)
Certifications CE / FCC
O.S. Support Windows 10 IoT Enterprise, Linux
