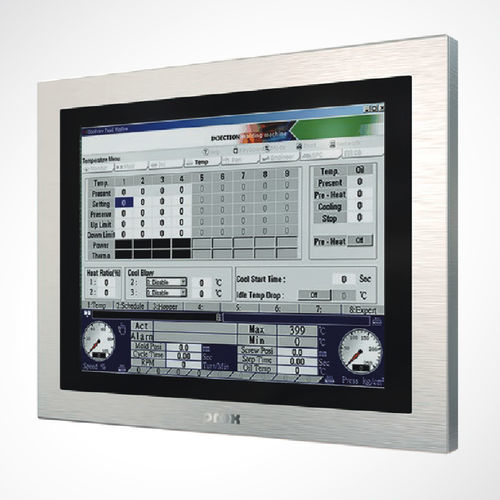

TFT LCD panel PC SG-S171LED backlightPCAP capacitive touch screen5-wire resistive touch screen
Add to favorites
Compare this product
Characteristics
- Screen type
- TFT LCD, LED backlight, PCAP capacitive touch screen, 5-wire resistive touch screen
- Display size
- 17"
- Resolution
- 1280 x 1024
- Processor
- Intel® Celeron® J3455, Intel® Atom x7-E3950
- Operating system
- Windows 10 IoT Enterprise
- Construction
- fanless, stainless steel frames
- Mounting
- VESA mounting, wall-mounted, stand
- Applications
- industrial
- Protection level
- IP66, IP69K, waterproof
Description
Intel ® Celeron ® J3455 / AtomTM x7-E3950 Processor Fanless and All-around IP66 / IP69K Stainless 17" Panel PC
● Intel® Celeron ® J3455 / Atom™ x7-E3950 processor on board
● Fanless and quiet design
● Stainless steel SUS304 / SUS316
● All-around IP66 / IP69K mechanical design
● M12 waterproof connectors
● Supports 5-wire resistive touchscreen or projected capacitive touchscreen
System
CPU Type Intel ® Celeron ® J3455 processor
Intel ® Atom™ x7-E3950 processor
Chipset Intel® SoC
Memory Support 1 x DDR3L 1600/1867MHz SO-DIMM socket
(up to 8G) (non-ECC)
Enclosure Stainless SUS304/SUS316
IP Rating IP66/IP69K
Power Input DC In 12V/16~24V
Watchdog 1~255 second watchdog timer selectable
Operating System Windows 10 IoT LTSC 2019 / Ubuntu 16.04
Dimensions 450 x 381 x 70 mm (W x H x D)
System Weight 11.5 kg
Mounting Support Wall mount / VESA 100 / Stand / Table
Certifications FCC / CE
