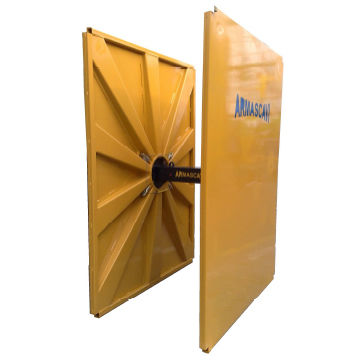

Excavation trench shoring system Armascavi®

Armascavi® is the simplest and most practical system to make safe trenches with width vaying from 60 cm to more than 3 m. With a resistance in line with UNI standards, the system supports compressive force up to 30 kN/m2. This characteristic makes it suitable also for use at a great depth. This system includes a set of components for the safety of people working out of the excavation: guard rail with toe board and supports for barriers and signs. ARMASCAVI the complete system to brace your excavation with width from 0,6 m to 2 m and with depth up to 8m bearing out the trust loap up to 295.000 da N/m2 Elements type: P cm 125 x 200 Peso kg cad. 155 L cm 150 x 200 Peso kg cad. 180 M cm 150 x 250 Peso kg cad. 220 Elements type: FA 60 scavi da cm 60/74/84 (kg 30) con prolunga opz. max 110 FA 70 scavi da cm 70/94/110 (kg 40) con prolunga opz. max 130 FA 80 scavi da cm 80/115/145 (kg 45) con prolunga opz. max 175 FB 600 scavi da cm 100/146/186 (kg 60) con prolunga opz. max 250/330 Accessories: - integrated extentions - telescopic wrench - Joint for accessories - post for accessories - Post for parapet - To stop foot - holder for lamps
