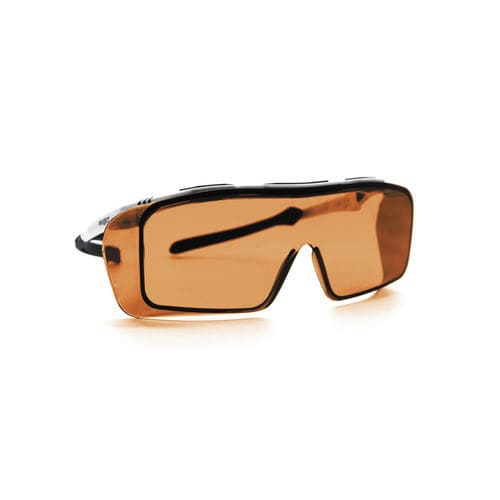

The ONTOR laser safety goggles are lightweight, versatile goggles made of a plastic frame that are ideal as over-the-eye goggles for spectacle wearers. The frame offers a very large field of vision and wide side coverage, with excellent wearing comfort due to flexible temples adjustable in length and inclination, and a special soft-rubber padding in the forehead area.
The 0278 laser safety filter is suitable for a variety of lasers including UV, Nd:YAG, Ti:Sapphire, Diode, Disc, Fiber and CO2. The filter is made of a dark orange special plastic and has a daylight transmission of 30% at low thickness and is CE certified.
Certified protection levels according to EN 207
Wavelengths (nm) - protection levels
180-315 - D LB10 + IR LB5 + M LB6Y (OD10+)
>315-532 - D LB6 + IR LB8 + M LB10 (OD10+)
>532-534 - D LB6 + IR LB7 (OD7+)
>534-536 - DIR LB6 (OD6+)
>536-538 - DIR LB5 (OD5+)
>538-541 - DIR LB4 (OD4+)
>541-544 - DIR LB3 (OD3+)
>759-785 - DIR LB3 (OD3+)
>785-819 - DIR LB4 (OD4+)
>819-851 - DIR LB5 (OD5+)
>851-882 - D LB6 + IRM LB7 (OD7+)
>882-924 - D LB6 + IRM LB8 (OD8+)
>924-1070 - D LB6 + IRM LB9 (OD9+)
950-1065 - D LB6 + IR LB9 + M LB10 (OD10+)
>1071-1078 - D LB6 + IRM LB8 (OD8+)
>1078-1080 - D LB6 + IRM LB7 (OD7+)
>1080-1082 - DIR LB6 (OD6+)
>1082-1085 - DIR LB5 (OD5+)
>1085-1101 - DIR LB4 (OD4+)
>1101-1117 - DIR LB3 (OD3+)
>1117-1133 - DIR LB2 (OD2+)
>5170-11500 - DI LB4 + R LB3Y (OD4+)
PF CE
